CNC Plastic Tube Bending Machines
The Industry Leader in Automatic Bending of Nylon Tubes
-

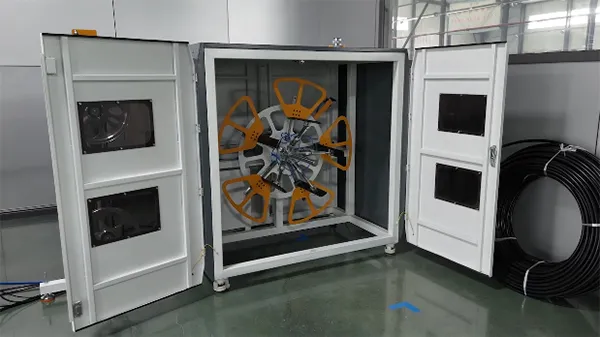

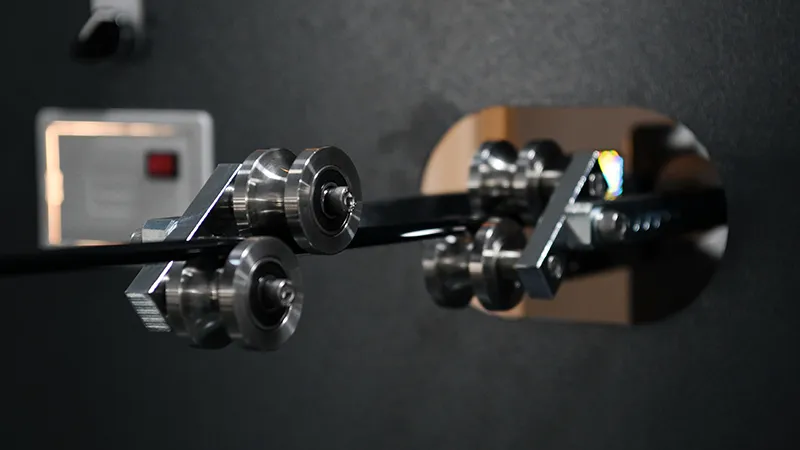

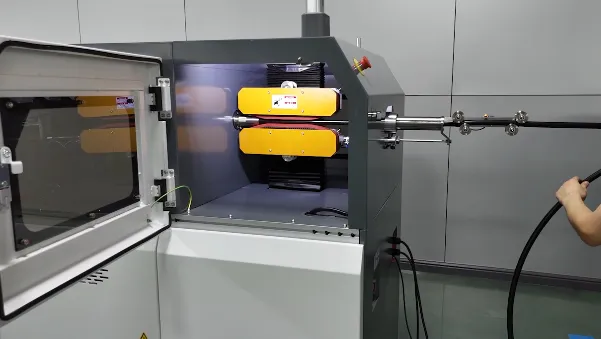

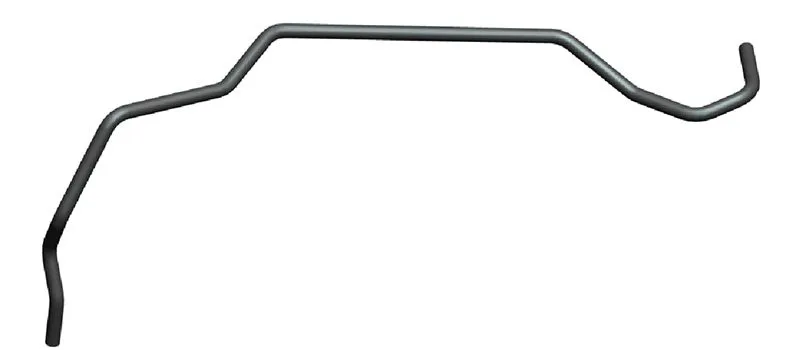

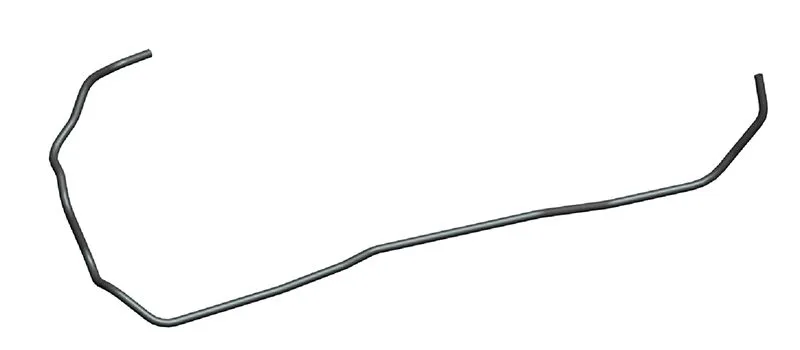

Plastic tube thermoforming machines use digital control systems to automate key stages of production, including feeding, heating, bending, cooling, and shaping. These bending systems are designed mainly for automotive tube manufacturing, helping enhance operations and reduce both costs and production time.
Our automotive plastic tube thermoforming machines depart from traditional plastic tube bending methods by eliminating the need for costly metal molds and extensive manual labor:

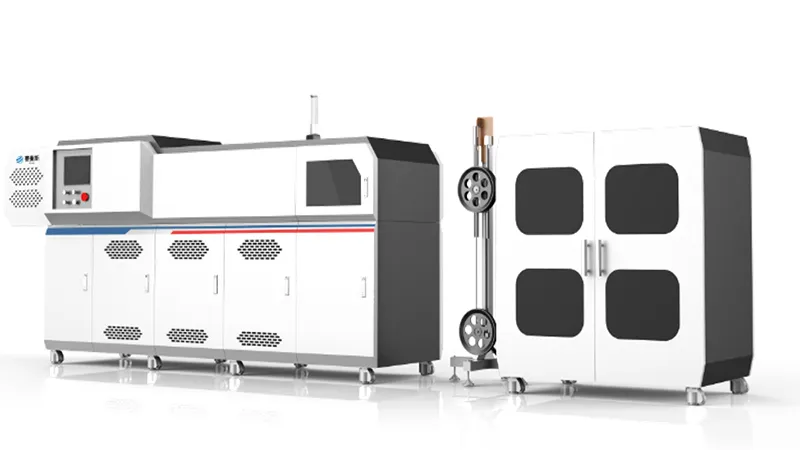

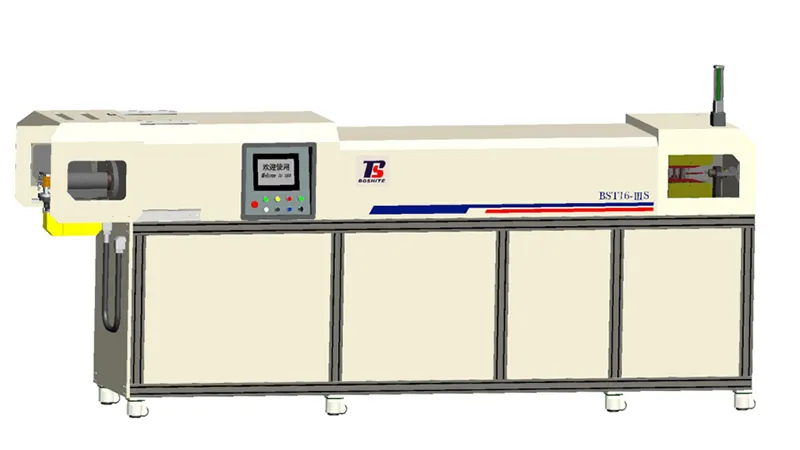

Saimansi offers a wide range of plastic tube bending machines, designed to accommodate various tube diameters from Ø6mm to Ø22mm. Whether you're working on small-scale or large-scale production, our machines are engineered to meet the precise requirements of the automotive industry, ensuring enhanced productivity and reduced costs. Find the right model for your project and streamline your manufacturing process with our high-efficiency bending equipment.
March 15, 2013: In response to the challenges of high energy consumption and labor costs in traditional nylon tube forming, we established a dedicated R&D team
May 18, 2015: The first generation of tube bending machines was introduced, enabling the processing of 25% of nylon tube types commonly used in industries such as automotive and manufacturing
June 16, 2017: The second generation followed, bringing a 1.5x increase in efficiency. This new generation of nylon tube bending equipment could handle 35% of nylon tube types, further reducing processing time and improving overall performance
November 15, 2019: The third generation introduced universal forming capabilities, boosting processing efficiency by 25% and handling up to 45% of nylon tube varieties. The machine's stability was also improved, and it received a national patent
August 1, 2021: Our fourth-generation of nylon tube bending machines became more efficient, handling up to 55% of nylon tube types and processing materials like PA612 and PA1012. This upgraded version of tube bending machines also optimized tube forming for high-temperature materials.
November 11, 2023: The fifth generation was launched with a more refined coordinate programming system. Our new nylon tube bending machines are now capable of processing 90% of nylon tube types, including those with larger diameters and thinner walls. Efficiency increased by 22%, and the plastic tube thermoforming machines now support advanced automation options like robotic integration for spring insertion and tube marking, which is highly beneficial for automotive applications

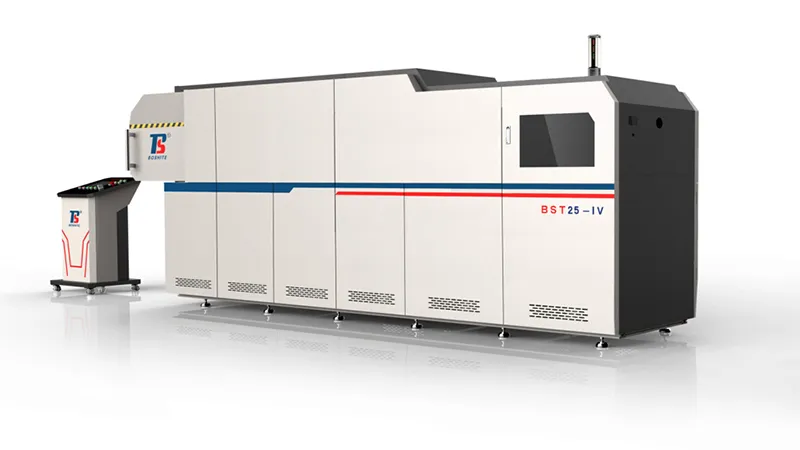

| Model | | | |
| Machine Color | White/industrial grey | White/industrial grey | White/industrial grey |
| Net Weight | 2100kg | 2200kg | 1600kg |
| Machine Size | 3800×1100×2050mm | 4250×1100×1800mm | 4200×850×1750mm |
| Rated Power | 13kW | 13kW | 11kW |
| Heating Power | 8.5kW (peak value) | 8.5kW (peak value) | 8.5kW (peak value) |
| Air Consumption | 0.3-0.5m³/min | 0.3-0.5m³/min | 0.3-0.5m³/min |
| Power Consumption | 5.5Kw.h | 4.5Kw.h | 3Kw.h |
| Right-Angle Production Rate | 3.5s/bend | 4.5s/bend | 6.5s/bend |
| Max. Bends | 40 | 30 | 15 |
| Max. Usable Length | 5000mm | 1000mm | 800mm |
| Memory Capacity | 2000 group | 1000 group | 300 group |
| Motor Power for Bending (Y axis) | 0.4kW (servo motor×1) | 0.4kW (servo motor×1) | 0.4kW (servo motor×1) |
| Motor Power for Rotation (Z axis) | 1.5kW (servo motor×1) | 0.75kW (servo motor×1) | 0.75kW (servo motor×1) |
| Motor Power for Back Feeding (X axis) | 0.4kW (servo motor×2) | 0.4kW (servo motor×2) | 0.4kW (servo motor×2) |
| Motor Power for Feeding (X axis) | 0.1kW (servo motor×2) | / | / |
| Motor Power for Lifting (Z axis) | 0.75kW (servo motor×1) | 0.75kW (servo motor×1) | / |
If you have questions, they will help
Saimansi specializes in delivering high-quality solutions for automotive tube bending and thermoforming processes. With years of experience and a dedication to innovation, Saimansi provides reliable plastic tube thermoforming equipment designed to meet the specific needs of modern automotive tube manufacturing. As part of a broader mission to enhance efficiency and sustainability in production, we focus on developing tube bending machinery that reduces energy consumption and improves production speeds. Supported by its parent company, Boshite, a trusted name in automotive tube fittings and nylon tubing since 2005, Saimansi continues to provide flexible and effective tube bending solutions that help customers maintain high standards and optimize their manufacturing operations.
