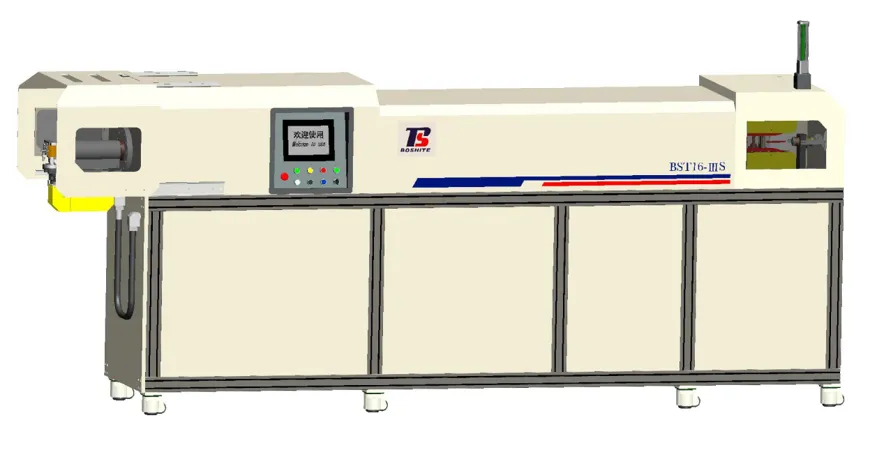

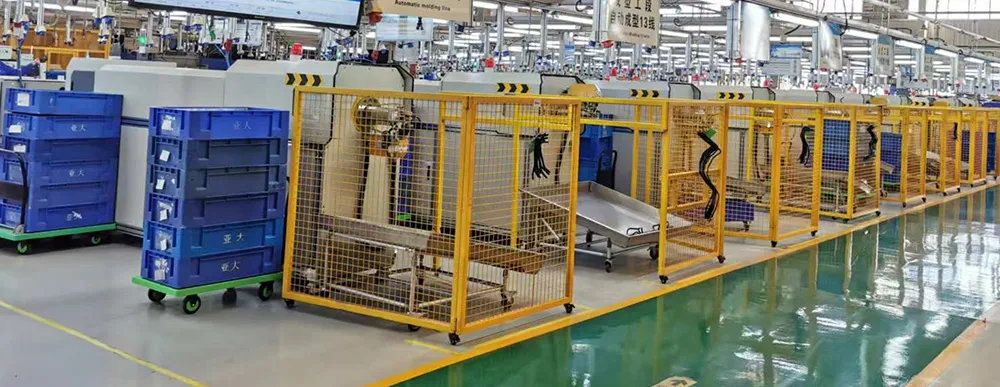

The 3rd generation nylon tube bending machine has been widely applied in processing single-layer PA11 and PA12 tubes for automotive uses. It features a fixed-frequency single-control heating system that operates at 8.5 kW, offering significant energy savings compared to traditional high-temperature forming methods. This pipe bending equipment removes the need for pre-shaping and mold setups, streamlining production by reducing time and associated costs. Capable of handling various tube shapes on a single machine, it provides flexibility for different nylon tube bending requirements. The production cycle, traditionally lasting up to 30 minutes, has been shortened to under 2 minutes, enhancing efficiency through improved heating and cooling processes.
| Machine Color | White/industrial grey |
| Net Weight | 1600kg |
| Machine Size | 4200×850×1750mm |
| Rated Power | 11kW |
| Heating Power | 8.5kW (peak value) |
| Air Consumption | 0.3-0.5m³/min |
| Power Consumption | 3kW.h |
| Right-Angle Production Rate | 6.5s/bend |
| Max. Bends | 15 |
| Max. Usable Length | 800mm |
| Memory Capacity | 300 job storage |
| Motor Power for Bending (Y axis) | 0.4kW (servo motor×1) |
| Motor Power for Rotation (Z axis) | 0.75kW (servo motor×1) |
| Motor Power for Back Feeding (X axis) | 0.4kW (servo motor×2) |
| Model | | | |
| Machine Color | White/industrial grey | White/industrial grey | White/industrial grey |
| Net Weight | 2100kg | 2200kg | 1600kg |
| Machine Size | 3800×1100×2050mm | 4250×1100×1800mm | 4200×850×1750mm |
| Rated Power | 13kW | 13kW | 11kW |
| Heating Power | 8.5kW (peak value) | 8.5kW (peak value) | 8.5kW (peak value) |
| Air Consumption | 0.3-0.5m³/min | 0.3-0.5m³/min | 0.3-0.5m³/min |
| Power Consumption | 5.5Kw.h | 4.5Kw.h | 3Kw.h |
| Right-Angle Production Rate | 3.5s/bend | 4.5s/bend | 6.5s/bend |
| Max. Bends | 40 | 30 | 15 |
| Max. Usable Length | 5000mm | 1000mm | 800mm |
| Memory Capacity | 2000 group | 1000 group | 300 group |
| Motor Power for Bending (Y axis) | 0.4kW (servo motor×1) | 0.4kW (servo motor×1) | 0.4kW (servo motor×1) |
| Motor Power for Rotation (Z axis) | 1.5kW (servo motor×1) | 0.75kW (servo motor×1) | 0.75kW (servo motor×1) |
| Motor Power for Back Feeding (X axis) | 0.4kW (servo motor×2) | 0.4kW (servo motor×2) | 0.4kW (servo motor×2) |
| Motor Power for Feeding (X axis) | 0.1kW (servo motor×2) | / | / |
| Motor Power for Lifting (Z axis) | 0.75kW (servo motor×1) | 0.75kW (servo motor×1) | / |
| Tube Size | Min. Bend Radius | Shortest Straight Line between Two Right Angles | Min. Included Angle |
| 6×1 | 22 | 30 | 85 |
| 8×1 | 25 | 35 | 85 |
| 10×1.25 | 25 | 40 | 85 |
| 12×1.5 | 35 | 45 | 85 |
| 12.5×1.5 | 35 | 45 | 85 |
| Model | S3000-22V | BST25-IV | BST16-IIIS | ||||||
| Tube Size | Min. Bend Radius | Shortest Straight Line between Two Right Angles | Min. Included Angle | Min. Bend Radius | Shortest Straight Line between Two Right Angles | Min. Included Angle | Min. Bend Radius | Shortest Straight Line between Two Right Angles | Min. Included Angle |
| 6×1 | 15 | 25 | 55 | 15 | 25 | 80 | 22 | 30 | 85 |
| 8×1 | 20 | 30 | 55 | 20 | 30 | 80 | 25 | 35 | 85 |
| 10×1 | 25 | 30 | 55 | 25 | 35 | 80 | / | / | / |
| 10×1.25 | 25 | 30 | 55 | 25 | 35 | 80 | 25 | 40 | 85 |
| 12×1 | 28 | 30 | 60 | / | / | / | / | / | / |
| 12×1.25 | 28 | 30 | 60 | 30 | 40 | 80 | / | / | / |
| 12×1.5 | 28 | 30 | 60 | 30 | 40 | 80 | 35 | 45 | 85 |
| 12.5×1.5 | 30 | 28 | 60 | 30 | 40 | 80 | 35 | 45 | 85 |
| 13.5×1.25 | 30 | 28 | 60 | / | / | / | / | / | / |
| 14×1.5 | 30 | 27 | 60 | 35 | 45 | 80 | / | / | / |
| 14×2 | 30 | 27 | 60 | 35 | 45 | 80 | / | / | / |
| 15×1.5 | 30 | 25 | 60 | / | / | / | / | / | / |
| 15×1.25 | 30 | 25 | 60 | / | / | / | / | / | / |
| 16×1.25 | 30 | 25 | 60 | / | / | / | / | / | / |
| 16×1.5 | 30 | 25 | 60 | / | / | / | / | / | / |
| 16×2 | 30 | 25 | 60 | / | / | / | / | / | / |
| 18×1.5 | 35 | 27 | 60 | / | / | / | / | / | / |
| 19×1.5 | 35 | 27 | 65 | / | / | / | / | / | / |
| 20×1.5 | 35 | 28 | 65 | / | / | / | / | / | / |
| 21×1.5 | 37 | 30 | 65 | / | / | / | / | / | / |
| 22×1.5 | 39 | 30 | 65 | / | / | / | / | / | / |
